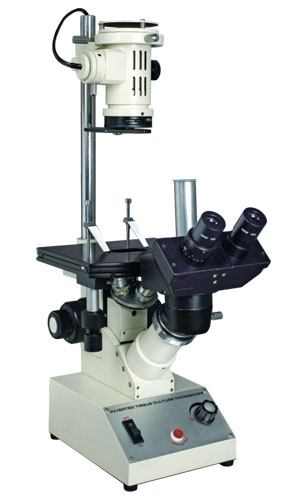

Inverted Tissue Culture Microscope

Description

Binocular Inverted Tissue Culture Microscope with quadruple revolving nosepiece, equipped with Binocular Observation Head and Best quality optical optical components having ful prismatic optical path, large co-axial mechanical stage of size 165mm. x 180mm., co-axial coarse & fine focussing knobs with adjustable tension control ring, variable intensity controlled built in base solid-state transformer, fitted with 6V 20Watts halogen bulb and illumination based on Keohler's system. Supplied with following optical combination in a storing box. Observation Head - 45° inclined Binocular head interchangeable with Monocular or Trinocular observation head. Nosepiece - Quadruple revolving turret nosepiece with positive accurate click stops. Stage - Oversize plain stage 180 x 150mm with 2 extension plates 150 x 65mm for large bottles and microfilter work. Illumination - Based on Koehler's system is provided by a post-mounted high intensity 6 volts 20 watts Halogen illuminator. Objectives - Achromatic 5x, 10x, LWD-20x & LWD-40XSL. Eyepieces - HWF 10x (paired) with eye guards.
