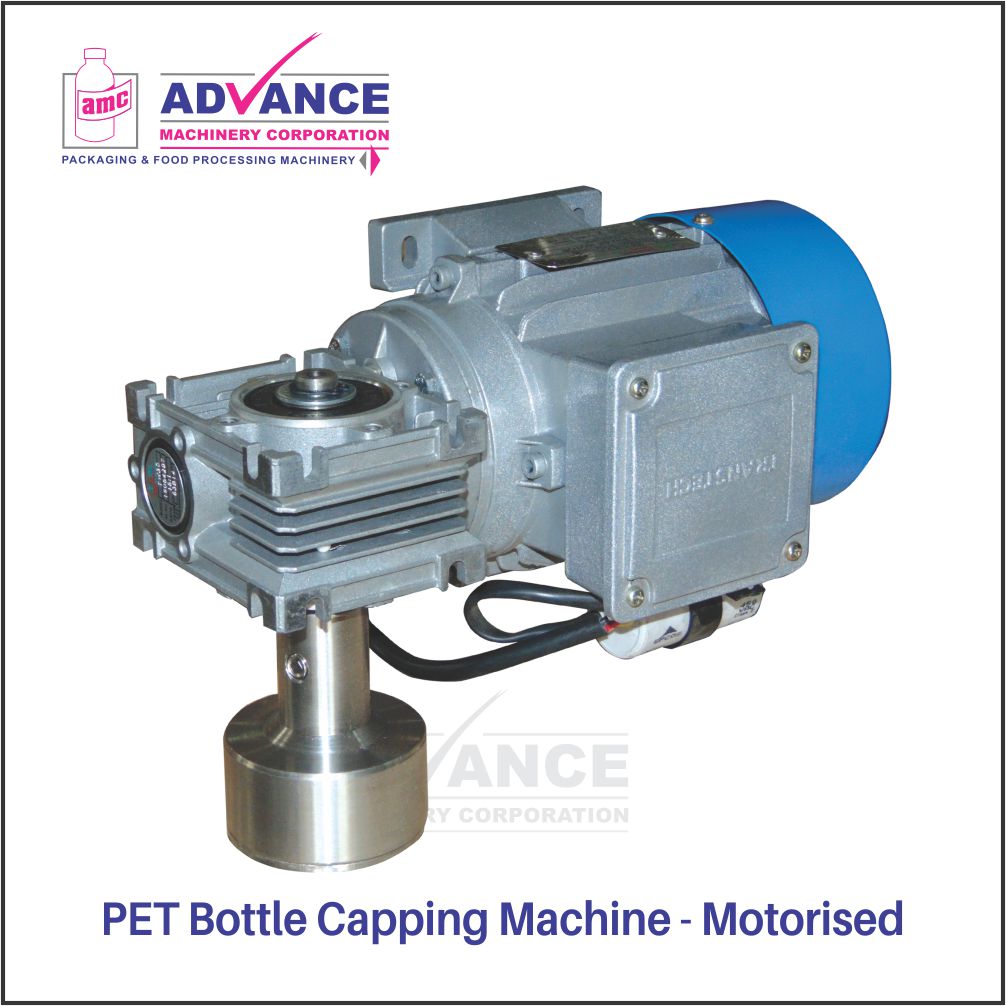

PET Bottle Capping Machine - Motorised

Description

This Capping Machine is used for capping PET bottles. Any PET bottle can be capped. However the capping die may vary according to the cap diameter. The Capper is powered by a 1/4 HP I PH motor with an attached gearbox. The capping die is fitted on the output shaft of the gearbox. The die rotates at an approximate speed of 100 RPM. After the PET bottle is filled, the cap is placed on it and the bottle with cap is pressed into the rotating Die. The rotating Die then automatically h olds the cap and tightens the cap on the bottle. This whole operation takes about 4-5 seconds depending upon the dexterity of the operator. A torque setting is provided to ensure the correct tightness of the cap. The amount of tightness required can be adjusted with the help of spring-loaded ball provided. The advantage of the machine is that all the bottles are evenly tightened and operator fatigue is low. An optional stand is available to fix the machine on a wall or table. About 10 bottles can be capped per minute.
