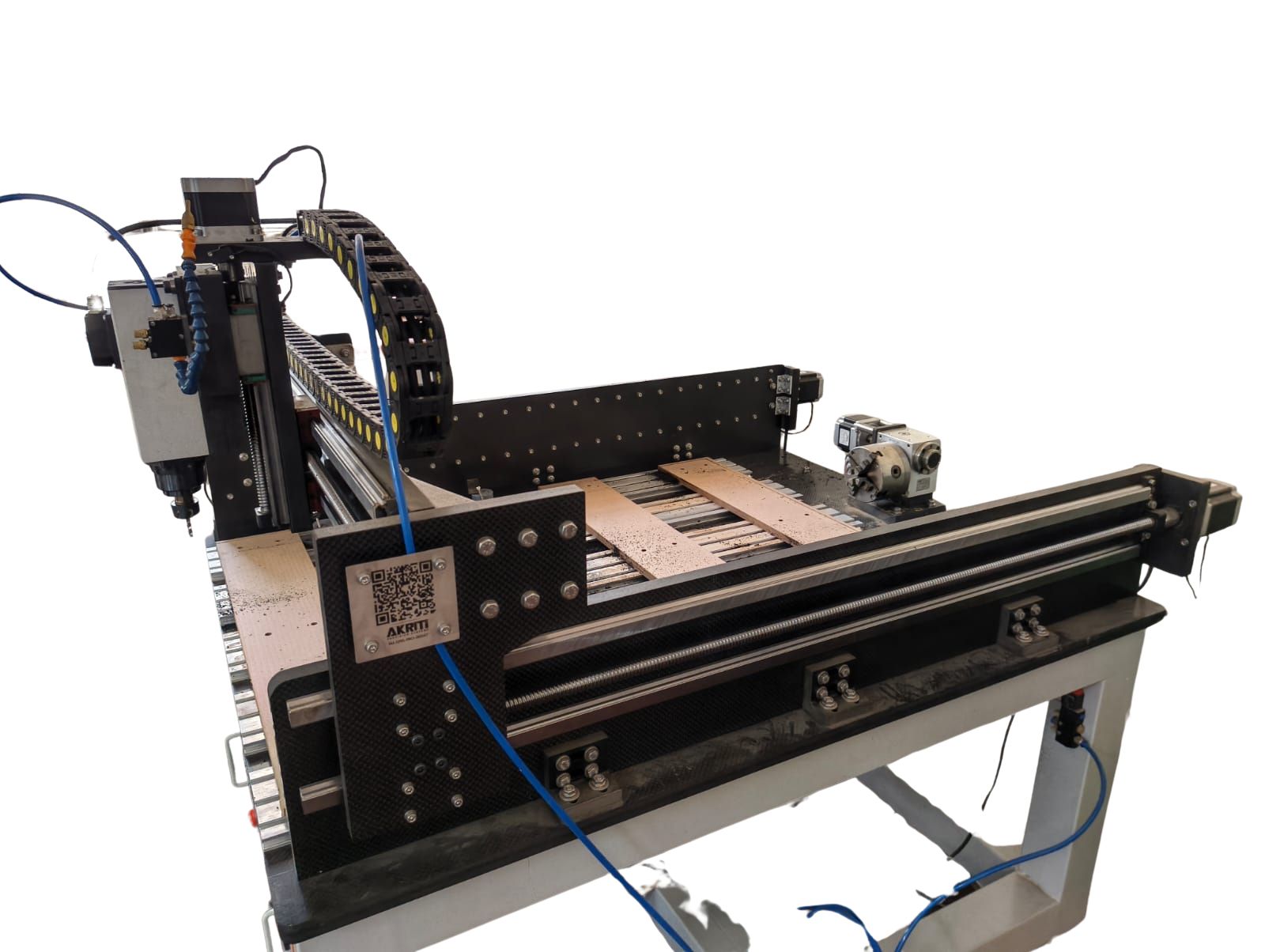

CarbonCut 1290 Pro

Description

The AKRITI Majestic 1290 Pro is an industrial-grade, high-performance 4-Axis CNC machine engineered for continuous, heavy-duty production (24/7 capability) in manufacturing facilities, tool rooms, and precision workshops. Proudly designed and Made in India, it utilizes an innovative composite superstructure and adheres to a strict "Zero Chinese Parts" philosophy, integrating top-tier components from India, Italy, Japan, and the USA. Key Highlights & FeaturesPioneering Composite Superstructure: Constructed with a world-first Carbon Fiber / Fiber Glass composite superstructure. This tabletop/desktop design offers unmatched rigidity and a lifetime warranty against sagging, hogging, rust, or corrosion. Premium Global Component Sourcing: Standard configurations feature an Italian Teknomotor spindle, Japanese Tamagawa NEMA 34 Steppers, and premium Hiwin/THK 25mm Linear Guides paired with 20mm Ball Screws. Indian Engineering & Control: The entire machine control architecture—including drivers, power supply, VFD, switches, and cooling fans—is comprised entirely of high-quality Made-in-India components. Plug & Play Delivery: Ships fully built, pre-configured, and ready for immediate deployment. Technical SpecificationsWorking Area (X x Y): Generous 1200 imes 900 MM work bed with a customizable Z-Axis travel of 150 MM. 4th Axis (A-Axis): Provides a large 950 MM usable length, equipped with a high-precision 125mm 4-Jaw Chuck, a worm gearbox, and a variable height tailstock . Accuracy & Precision: Features a certified repeat positioning accuracy of <50 microns, with tested real-world repeatability between 15 to 25 microns (0.015 to 0.025 MM). The A-axis delivers a tight <5 ArcMin Backlash with full simultaneous 4-axis motion interpolation. Spindle Performance: Powered by a Teknomotor 2.2 KW / 3 HP air-cooled spindle delivering up to 24,000 MAX RPM via an ER20 collet with Manual Tool Change (MTC). Control System: Driven by an integrated LinuxCNC desktop PC controller bundle, complete with a 22-inch Full HD Monitor, keyboard, and mouse. Spindle speeds and mist cooling are automated directly via G-code/M-code. Supported MaterialsThe Majestic 1290 Pro smoothly processes an extensive array of materials: Metals: Untreated EN Steel (EN 8/24/31/32), Aluminum, Copper, Brass, Bronze, Zinc, Magnesium, Lead, Gold, Silver, Platinum, and Copper-Tungsten. Composites & Plastics: Carbon Fiber, Fiber Glass, Aramid, Acrylic, Polycarbonate, ABS, Epoxy, Graphite, ACP Sheet, and Foam. Other Materials: Wood, MDF, Rubber, Silicone, PCBs, and Granite. Standard Accessories IncludedThe package includes 5 x Milling Bits (3mm, 4mm, 6mm), 3 x ER Collets (3mm, 4mm, 6mm), workholding hardware (10 x T-Nuts, 8 x Stock Bolts, 4 x Composite Holders), a spindle spanner, and a connector cable. Upgrades & Factory OptionsOptional upgrades feature ultra-precise German spindles from Mechatron or Spinogy, premium Teknic ClearPath Integrated Servo Motors (Made in USA) with a 3-year warranty, industrial floor-standing enclosures, safety bellows (retaining 85-88% of the working area), Z-axis touch probes, flood cooling, a mild steel table, and diode laser compatibility (via Arduino controller). The system is ISO 9001 and CE Certified, calibrated using premium Mitutoyo instruments, and carries optional extended warranties up to 10 years. Indicative Prices Only :- 1125000
