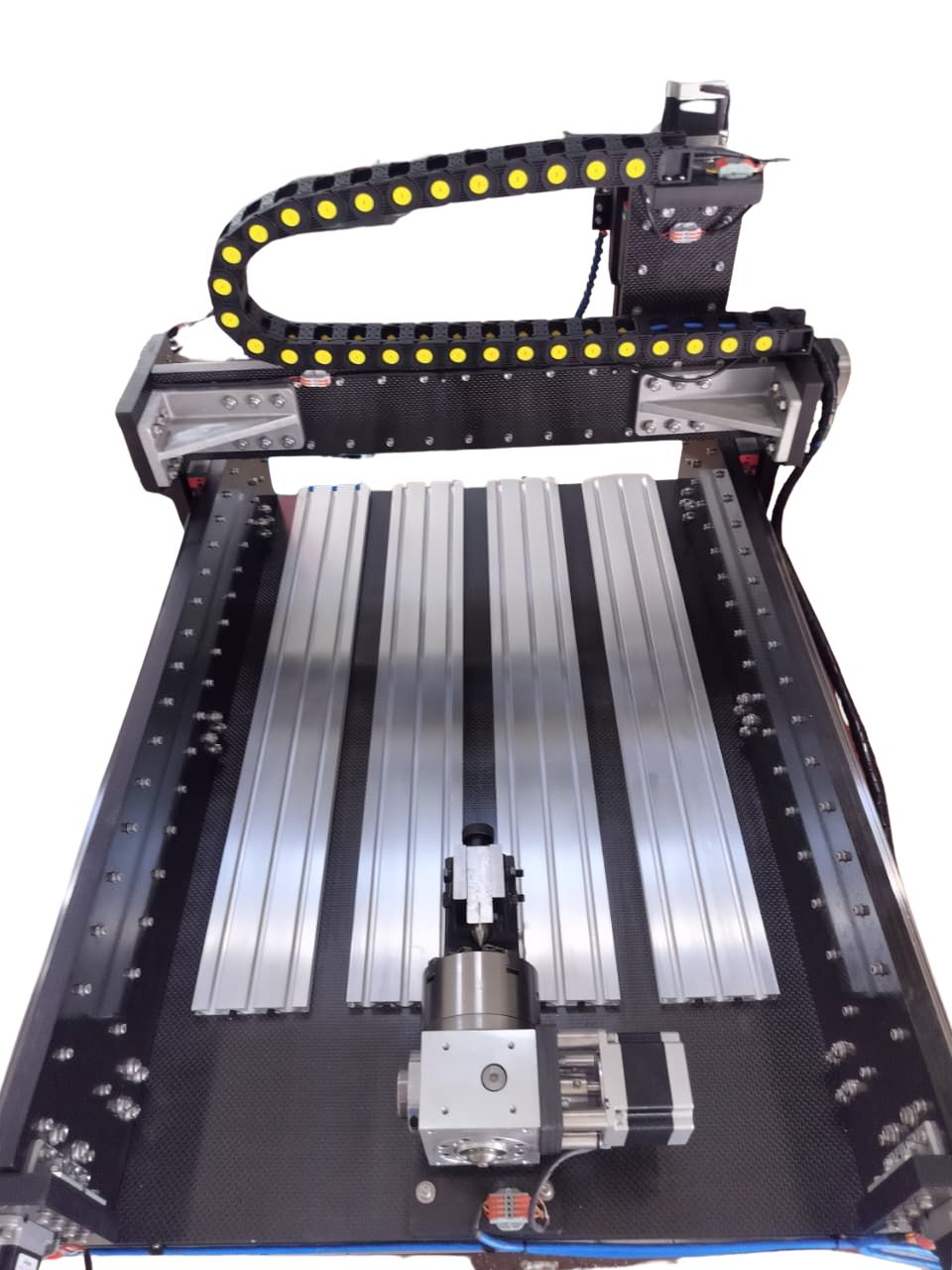

CarbonCut 9060 Pro

Description

The AKRITI CarbonCut 9060 PRO is a professional-grade, high-performance 4-Axis CNC machine engineered for continuous, heavy-duty operations (24/7 capability) in manufacturing facilities, tool rooms, and workshops. Proudly designed and Made in India, it features an innovative composite superstructure and adheres to a strict "Zero Chinese Parts" philosophy, utilizing premium components sourced from India, Italy, Japan, and the USA. Key Highlights & FeaturesPioneering Composite Superstructure: Built with a world-first Carbon Fiber / Fiber Glass composite superstructure. This tabletop/desktop design offers extreme rigidity and a lifetime warranty against sagging, hogging, rust, or corrosion. Premium Global Supply Chain: Standard equipped with an Italian Teknomotor spindle, Japanese Tamagawa NEMA 34 Steppers, and Hiwin/THK 25mm Linear Guides paired with 20mm Ball Screws. Indian Engineering: All machine control elements—including the controller, drivers, power supply, VFD, switches, and fans—are high-quality Made-in-India components. Plug & Play: Ships fully assembled, pre-configured, and ready for immediate operation. Technical SpecificationsWorking Area (X x Y): 900 imes 600 MM with a customizable Z-Axis travel of 150 MM. 4th Axis (A-Axis): Provides a 650 MM usable length, equipped with a high-precision 125mm 4-Jaw Chuck and a variable height tailstock. Accuracy: Features a certified repeat positioning accuracy of <50 microns, with tested real-world repeatability between 15 to 25 microns (0.015 to 0.025 MM). The A-axis features <5 ArcMin Backlash with full simultaneous 4-axis motion interpolation. Spindle & Speed: Powered by a Teknomotor 2.2 KW / 3 HP air-cooled spindle delivering up to 24,000 MAX RPM via an ER20 collet with Manual Tool Change (MTC). Control System: Driven by a preinstalled LinuxCNC desktop PC controller bundle, complete with a 22-inch Full HD Monitor, keyboard, and mouse. Spindle speeds and dual mist cooling are automated directly via G-code/M-code. Supported MaterialsThe CarbonCut 9060 PRO cuts, mills, and engraves an extensive range of diverse materials: Metals: Untreated EN Steel (EN 8/24/31/32), Aluminum, Copper, Brass, Bronze, Zinc, Magnesium, Lead, Gold, Silver, Platinum, and Copper-Tungsten. Composites & Plastics: Carbon Fiber, Fiber Glass, Aramid, Acrylic, Polycarbonate, ABS, Epoxy, Graphite, ACP Sheet, and Foam. Other Materials: Wood, MDF, Rubber, Silicone, PCBs, and Granite. Standard Accessories IncludedShips with 5 x Milling Bits (3mm, 4mm, 6mm), 3 x ER Collets (3mm, 4mm, 6mm), workholding hardware (10 x T-Nuts, 8 x Stock Bolts, 4 x Composite Holders), a spindle spanner, and a connector cable. Upgrades & Factory OptionsOptional configurations include ultra-precise German spindles from Mechatron or Spinogy, premium Teknic ClearPath Integrated Servo Motors (Made in USA) with a 3-year warranty, industrial floor-standing enclosures, safety bellows, Z-axis touch probes, flood cooling, and diode laser compatibility (via Arduino controller). The system is ISO 9001 and CE Certified, calibrated with Mitutoyo instruments, and carries optional extended warranties up to 10 years. Indicative Prices Only :- 950000
