CarbonCut 6040 Pro

Description

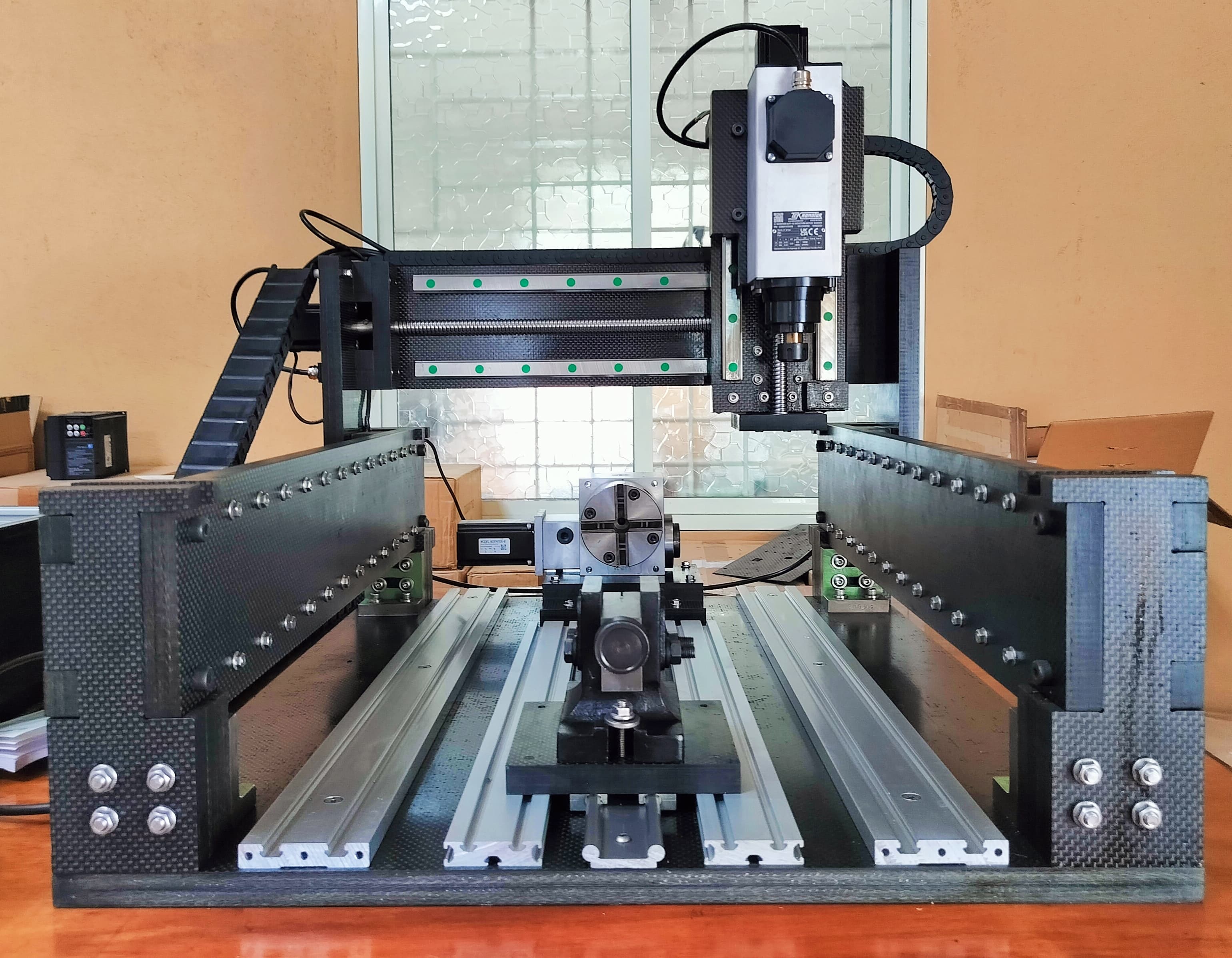

The AKRITI CarbonCut 6040 PRO is a professional-grade, high-performance 4-Axis CNC machine designed for continuous, round-the-clock operations (24/7 capability) in manufacturing facilities, tool rooms, and workshops. Proudly engineered and Made in India, it features an innovative composite superstructure and prides itself on sourcing zero components from China, opting instead for high-end parts from India, Italy, Japan, and the USA. Key Highlights & FeaturesPioneering Composite Superstructure: Built using a world-first Carbon Fiber / Fiber Glass composite superstructure. It features a tabletop/desktop design that offers extreme rigidity with a lifetime warranty against sagging, hogging, rust, or corrosion. Zero Chinese Parts / Global Supply Chain: Features a standard Teknomotor spindle from Italy, Tamagawa NEMA 34 Steppers from Japan, and Hiwin/THK 20mm Ball Screws and 25mm Linear Guides. Machine Control: Built with Made-in-India components including the controller, drivers, power supply, VFD, switches, and fans. Plug & Play Configuration: Ships fully assembled, pre-configured, and ready to run right out of the box. Technical SpecificationsWorking Area (X x Y): 600 imes 400 MM with a customizable Z-Axis travel of 150 MM. 4th Axis (A-Axis): 350 MM usable length featuring a high-precision 125mm 4-Jaw Chuck and variable height tailstock. Accuracy: Certified repeat positioning accuracy of <50 microns, with tested real-world repeatability landing between 15 to 25 microns (0.015 to 0.025 MM). The 4th axis provides <5 ArcMin Backlash with simultaneous 4-axis motion full interpolation. Spindle Power: Standard Teknomotor 2.2 KW / 3 HP air-cooled spindle running up to 24,000 MAX RPM using an ER20 collet with Manual Tool Change (MTC). Control System: Driven by an integrated LinuxCNC desktop PC controller. The hardware bundle includes a standalone control console box, Desktop PC, 22-inch Full HD Monitor, keyboard, and mouse. Spindle speeds and dual mist cooling are automated via G-code. Supported MaterialsThe CarbonCut 6040 PRO is engineered to cut and engrave an exceptionally wide range of materials: Metals: Untreated EN Steel (EN 8/24/31/32), Aluminum, Copper, Brass, Bronze, Zinc, Magnesium, Lead, Gold, Silver, Platinum, and Copper-Tungsten. Composites & Plastics: Carbon Fiber, Fiber Glass, Aramid, Acrylic, Polycarbonate, ABS, Epoxy, Graphite, ACP Sheet, and Foam. Wood & Textiles: Wood, MDF, Rubber, and Silicone, alongside specialized milling for PCBs and Granite. Standard Accessories IncludedThe machine ships with 5 x Milling/Cutting Bits (3mm, 4mm, 6mm), 3 x ER Collets (3mm, 4mm, 6mm), workholding hardware (10 x T-Nuts, 8 x Stock Bolts, 4 x Composite Holders), a spindle spanner, and connector cables. Upgrades & Factory OptionsAvailable upgrades include premium German spindles from Mechatron (up to 60,000 RPM) or Spinogy (runout <3 microns), alongside premium Teknic ClearPath Integrated Servo Motors (Made in USA) with a 3-year warranty. Enclosure upgrades, safety bellows, Z-axis touch probes, flood cooling, and diode laser compatibility (via Arduino controller) are also available. Power requires a standard Single Phase input 220V/110V on a 16 Amp plug point. The entire unit is ISO 9001 and CE Certified, calibrated using premium Mitutoyo instruments, and backed by an optional extended warranty of up to 10 years. Indicative Prices Only :- 775000
