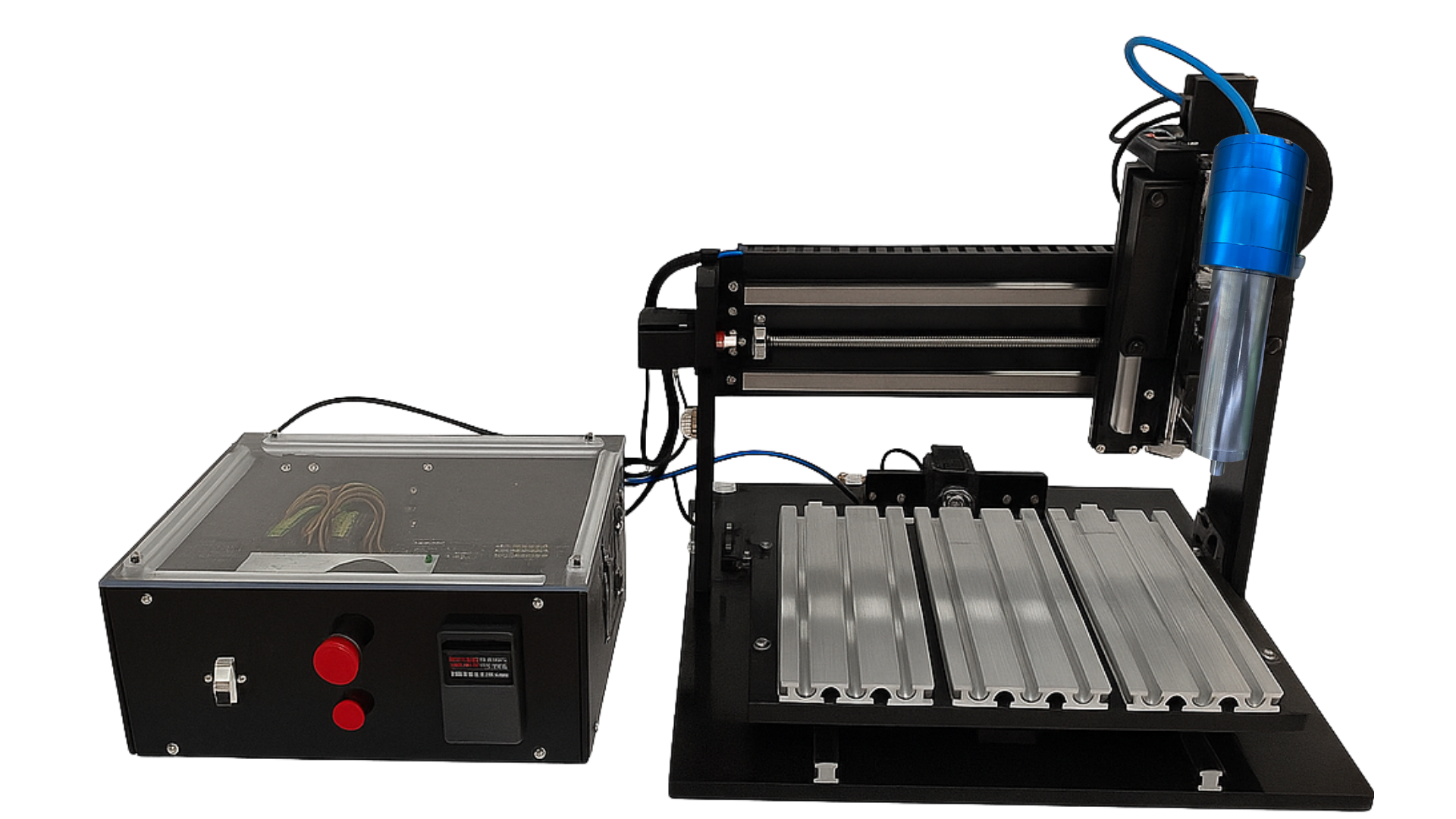

PCBMaker 5040 40K
  • Category: CNC Machines
  • Keywords: PCBMaker 5040 40K, large area high speed PCB CNC machine
  • Manufacturer Name: Akriti Precision Systems
  • Packing size:
  • Price: ₹635,000

Description

High-precision PCB drilling and routing CNC with 500 x 400 mm working area and 100 mm Z travel. Equipped with powerful 40,000 RPM, 1kW water-cooled spindle (Indus, India) with ER11 collet and <20 microns runout. Features Arduino-based controller, FlatCAM + GSender software, Hiwin/THK linear guides, 16mm ball screws, and contactless tool height sensor. Tested accuracy of 15-25 microns. Capable of 30-40 holes per minute (upgradable to 80-100 with servo). Innovative carbon fiber/fiberglass composite superstructure with lifetime warranty on mild steel base. Fully Made in India with zero Chinese parts. Ideal for single/dual layer PCB prototyping and production. Ships fully assembled with drilling & engraving bits. Indicative Prices Only :- 635000
