Description

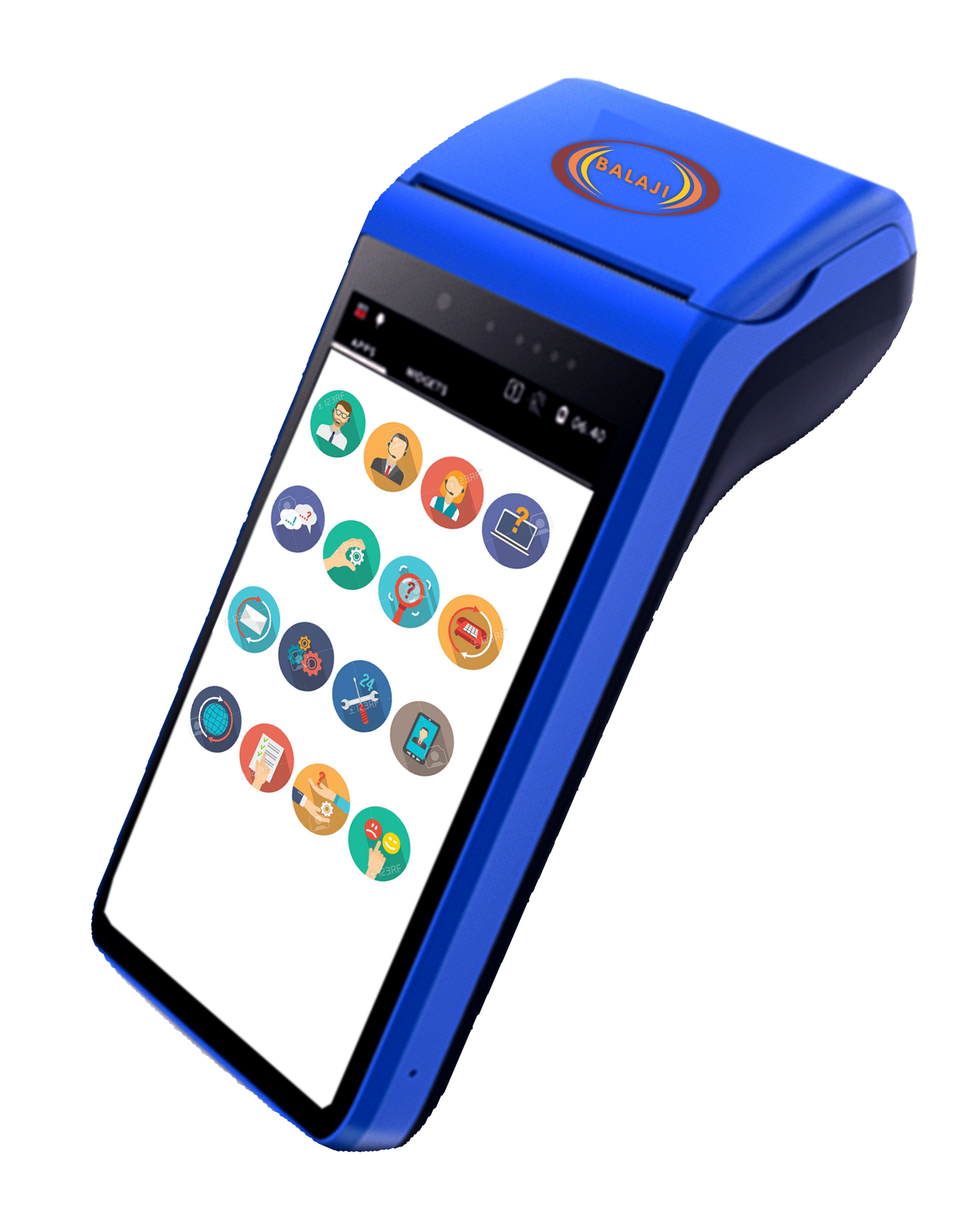

Technical Specification BALAJI AOS Android POS Physical parameters Dimensions 170mm*82mm*56mm/25mm Weight 350g(battery included) Operating Temp. - 20C ~ 60C Storage Temp. - 40C ~ 80C Relative Humidity 10%-90%(no condensation) Crash-proof Passed 1-meter falling test Tumble Test Tumbles 500 times lndustrial-grade N/A Anti-static ±8KV contact discharge : ±15KV air discharge System Parameters CPU Qualcomm MSM8909 quad-core 1.2GHz Operating system Android 5.1 Memory ROM 8GB eMMC, RAM 1GB DDR3 support 32 GB external memory card at most Touch Screen 5 inches WVGA,IPS Capacitive touch screen Keypad 1 Physical key 3 touch key Battery 7.4V 2000mAh / 2200mAh / 4000mAh Functional Configuration Bar Codes Scanning Camera decoding Camera 8M (Rear FF with flash light) 0.3M (front FF) Printer 2 inches line thermal printer, high pressure 7.4V line thermal printer paper width is 58mm/print width is 48mm, the range of inside diameter ls 8-13mm/outer diameter is 40mm Navigation GPS, support AGPS Indicator Light System indicator light, POS indicator light Audio system Built-in speaker, microphone Sensor Gravity sensor optional POS Sound Wave Payment Support Magnetic Strip Card Reader Support track 1/2/3,bi-directional swiping, support IS07811,7812 IC Card Reader 1 SD for user, support 1.8V/3V/5V card, support IS07816, PBOC & EMV Non-contact Card Reader 13.56MHz,ISO/IEC 14443 Type A/B, support QPBOC SAM Card Reader 1 or 2 PSAM Slots, support IS07816 USIM 1 or 2 USIM slot Pin Pad Password keyword Inside (external interface reserved) Internet Parameters Network Type LTE/WCDMA/GSM/CDMA Network Spectrum LTE Band1/B and3/Band8, GSM:SS0/900/1800/1900, WCDMA:Band1/Band2/Ban d5/Band WLAN 802.11 b/g/n Inner antenna Bluetooth Bluetooth V4.0 + EDR External Interface USB Interface Micro USB2.0 Charge Jack DC JACK/USB Power Supply Jack POGO Pin,5V-2A Communication Interface USB, Rs232 Development Environment System Environment Android 5.1SP-UI Development Environment SP-SDK Management Software SP-PC management suite/MDM
