Description

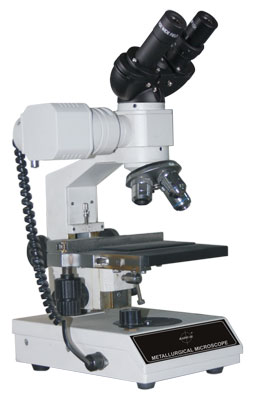

Metallurgical Microscope PSAW (Upright model )- For use in material science, inspection of printed circuit boards, semiconductor products etc. This microscope produces clear, sharp and bright image of metal specimen as well as other samples. A set of different achromatic parafocal objectives having anti reflection coating and flat field are supplied with the microscope. The microscope has a die cast arm and a large, heavy , stable base. The base accomodates transformer and eletrical fittings. Binocular head is inclined at 45o and rotatable through 360o. It can be fixed inany position and has diopter adjustment and inter -pupillary distance adjustment. Quadruple revolving nose piece with positive click stop is provided with ribbed grip for easy rotation. Mechanical stage is 135mm x 140mm. X & Y movement is controlled by low co-axial drive controls. Low mounted coarse and graduated fine focussing control knobs act directly on stage. the tension of coarse focus control knob can be adjusted through tightening ring. standard optical combination includes M4x, M10x, M40x. wide field eyepiece 10x and 16x Max. magnification 640x.
